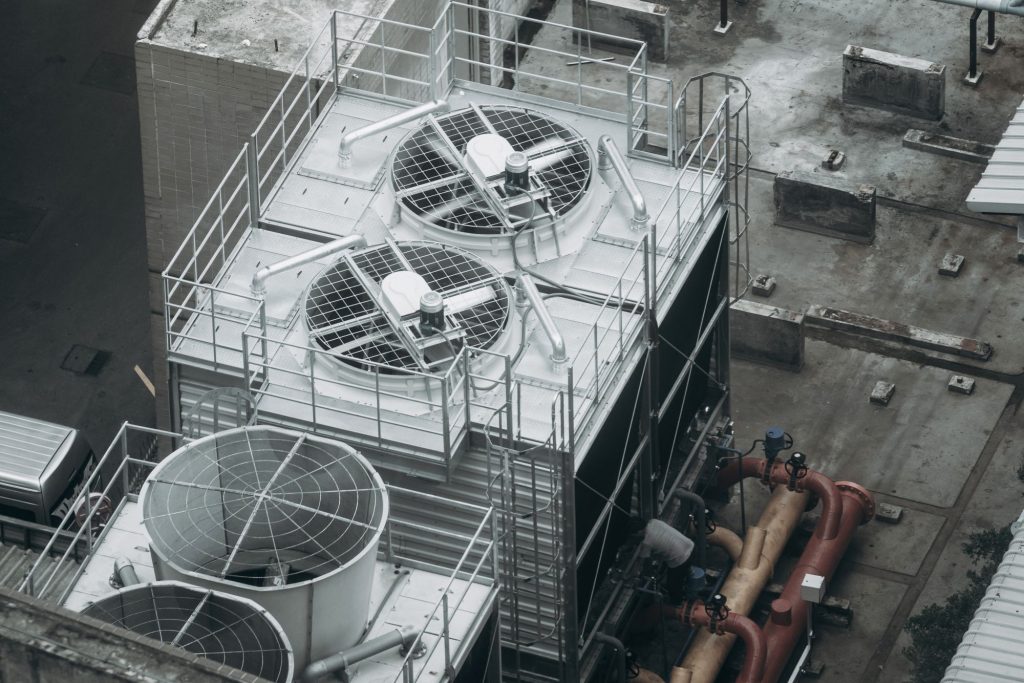

Cooling towers are essential components in many commercial and industrial HVAC systems.
Their main job? To reject unwanted heat from buildings or equipment by using the power of air and water. Let’s take a closer look at how they work and why they matter.
What is a Cooling Tower?
A cooling tower is a type of heat exchanger that removes excess heat from water and releases it into the atmosphere. It typically does this through a process called evaporative cooling.
This means that a small portion of the water evaporates, which cools down the remaining water that is then recirculated through the HVAC system.
The Cooling Cycle Step by Step
- Warm water returns from the system: Heat is absorbed by water as it circulates through equipment like chillers or condensers. This warm water then flows into the cooling tower, where the cooling process begins.
- Spray and fill media: Inside the tower, the warm water is sprayed through nozzles to break it into smaller droplets. These droplets fall over what’s called the fill media, which increases the surface area and allows better contact between the water and incoming air.
- Airflow and evaporation: A fan pulls air through the tower in the opposite direction to the falling water. As the water meets the air, some of it evaporates. This evaporation draws heat out of the water, cooling it down.
- Cooled water returns to the system: The cooled water collects in a basin at the base of the tower and is pumped back into the HVAC system, ready to absorb more heat.
Types of Cooling Towers
Evaporative (open circuit): These are the most common type. They cool water through direct contact with air and allow some evaporation. They are very efficient but use more water.
Dry (closed circuit): These systems use a coil to keep water enclosed. Air is blown across the coil to cool the water inside. No water is lost, making them suitable for areas with water restrictions.
Hybrid systems: These combine both evaporative and dry methods. They are designed to save water while still providing reliable cooling performance.
Key Components in a Cooling Tower
Fill media: Increases the surface area for water-air contact and improves heat transfer.
Drift eliminators: Capture water droplets carried by the outgoing air, reducing water loss and preventing drift into surrounding areas.
Louvers: Help manage airflow into the tower and minimise splash-out.
Fan and motor: Draw air through the system to aid evaporation and cooling.
Why Cooling Towers Matter in HVAC
Cooling towers play a critical role in helping HVAC systems perform efficiently. By rejecting excess heat from chillers or other equipment, they allow these systems to operate at their best.
In commercial buildings, hospitals, and manufacturing plants, consistent temperature control is essential—and cooling towers provide a reliable solution.
In systems where multiple units share a central loop, one cooling tower can support a large network of HVAC equipment. This helps lower energy use and maintenance costs while keeping building comfort at a high level.
Summary
- Cooling towers remove excess heat from HVAC systems using air and water.
- Water warmed by chillers is sprayed into the tower and cooled by air and evaporation.
- The cooled water is collected and reused in a continuous loop.
- There are different types of towers, including evaporative, dry, and hybrid models.
- Cooling towers help maintain energy efficiency, reduce operational costs, and support consistent building performance.
